What is Mean Intersection over Union (mIoU)?
•
mIoU is one of the representative performance metrics for semantic segmentation.
•
It is calculated by computing the intersection over union for each segmented class and then taking the average across all classes.
•
The equation of IoU is defined as below:
•
Here, represents True positive, represents False Positive, and represents False Negative.
•

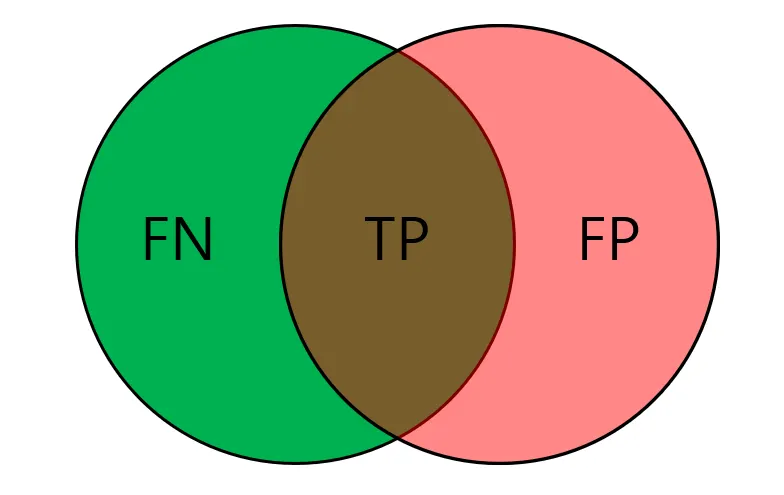

In the figure, the green area represents the Ground Truth and the red area represents the Prediction, as indicated by , , and .
Calculating mIoU
Ground Truth and Prediction
•

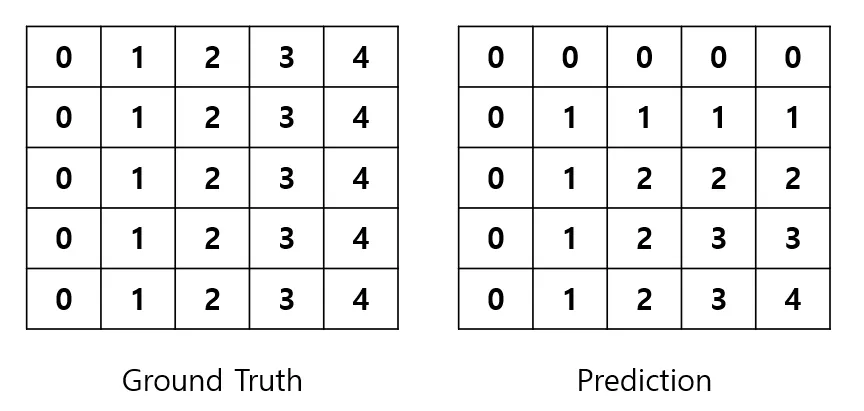

Generally, the output of segmentation consists of ground truth (GT) and prediction, as shown in the figure below.
•
GT and Prediction include integers corresponding to the object class for each pixel.
•
In the example below, the total number of classes is represented as 5, ranging from 0 to 4.
•
If implemented as a PyTorch Tensor, it would look like this:
import torch
gt = torch.tensor([
[0, 1, 2, 3, 4],
[0, 1, 2, 3, 4],
[0, 1, 2, 3, 4],
[0, 1, 2, 3, 4],
[0, 1, 2, 3, 4],
])
pred = torch.tensor([
[0, 0, 0, 0, 0],
[0, 1, 1, 1, 1],
[0, 1, 2, 2, 2],
[0, 1, 2, 3, 3],
[0, 1, 2, 3, 4],
])
Python
복사
Creating the Category Matrix
•
A Category Matrix, which maps pairs of GT and Prediction between 0 and , is obtained from GT and Prediction. (For convenience, it is referred to as Category below.)
•
The formula to obtain the Category is as follows:
•
Calculating according to the above formula, values from 0 to 5 in the Category represent the values of Prediction when GT is 0.
•
Similarly, values from 6 to 10 represent the values of Prediction when GT is 1.
•
The code is as follows:
num_classes = 5
category = gt * num_classes + pred
print(category)
Python
복사
•
The result of the computation is:
tensor([[ 0, 5, 10, 15, 20],
[ 0, 6, 11, 16, 21],
[ 0, 6, 12, 17, 22],
[ 0, 6, 12, 18, 23],
[ 0, 6, 12, 18, 24]])
Markdown
복사
Creating the Confusion Matrix
•
The Confusion Matrix can be obtained by calculating the number of elements for each number in the Category.
•
For example, an element with a value of 10 in the Category indicates that GT is 1 and Prediction is 5.
•
Therefore, by counting the number of elements with a value of 10 in the entire Category, we can count the number of pixels where GT was 1 and Prediction was 5.
•
The numbers for each element are calculated using the bincount function in torch and numpy.
•
Since the input of bincount is a 1D input, we perform flatten.
•
Also, we set the minimum value of the bin to to ensure that it works properly even if some classes are not included in GT or Prediction.
•
Finally, we resize the matrix to to make it a 2D Confusion Matrix.
category_1d = category.flatten()
cm = torch.bincount(category_1d, minlength=num_classes ** 2)
cm = cm.reshape(num_classes, num_classes)
print(cm)
Python
복사
tensor([[5, 0, 0, 0, 0],
[1, 4, 0, 0, 0],
[1, 1, 3, 0, 0],
[1, 1, 1, 2, 0],
[1, 1, 1, 1, 1]])
Markdown
복사
•

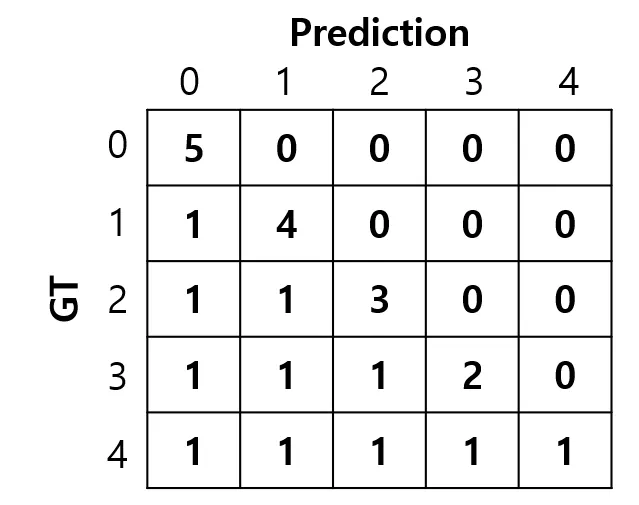

The Confusion Matrix represents the following in the table:
•
The value at (0, 0) in the Confusion Matrix represents the number of pixels where both GT and Prediction were 0.
Intersection and Union
•
Intersection and Union can be easily calculated from the Confusion Matrix.
•
For example, by adding up the number of rows with GT 0 and columns with Prediction 0 in the Confusion Matrix, we get the union.
•
The intersection is the number of elements where both GT and Prediction are 0.
•

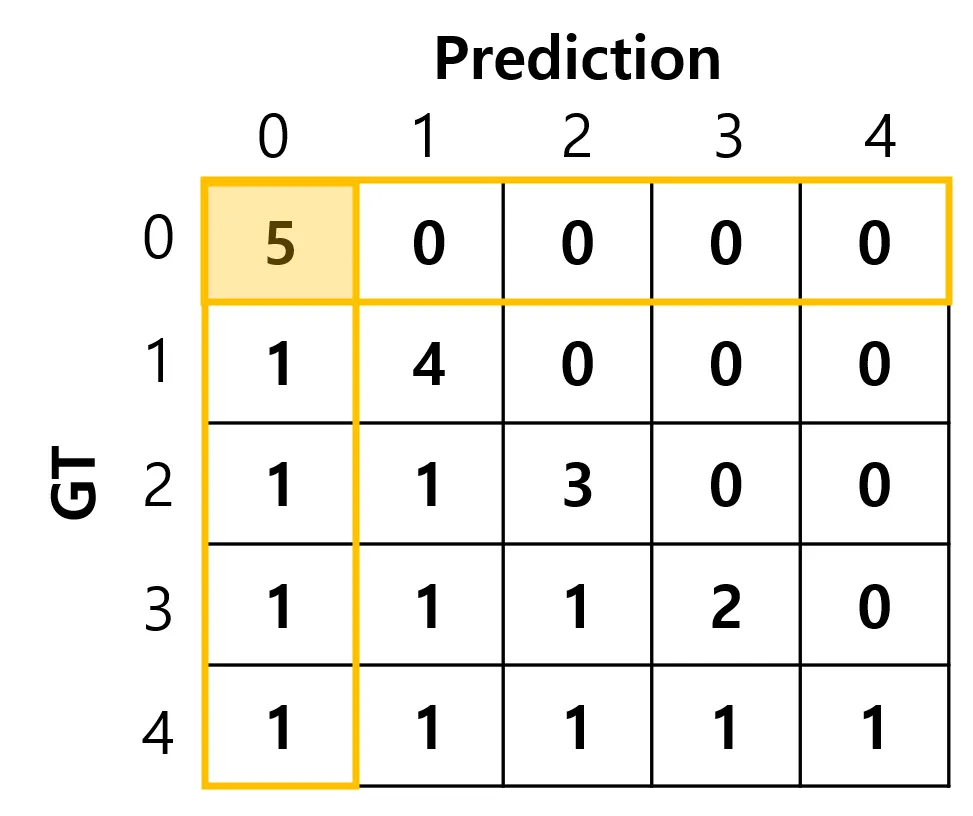

The yellow solid line in the figure represents the Union, and the yellow colored area represents the Intersection.
•
The IoU of class 0 is .
•
By following the same procedure for other classes, the IoUs for each class are , , , , and .
ious = []
for i in range(num_classes):
inter = cm[i, i].sum()
union = cm[:, i].sum() + cm[i, :].sum() - inter
ious.append(inter/union)
print(ious)
Python
복사
[tensor(0.5556), tensor(0.5000), tensor(0.4286), tensor(0.3333), tensor(0.2000)]
Markdown
복사
mIoU
•
Finally, mIoU is calculated as the average of the calculated IoUs.
•
To account for the possibility of certain classes not appearing, we use nanmean instead of the mean function.
mIoU = torch.nanmean(torch.tensor(ious))
print(mIoU)
Python
복사
tensor(0.4035)
